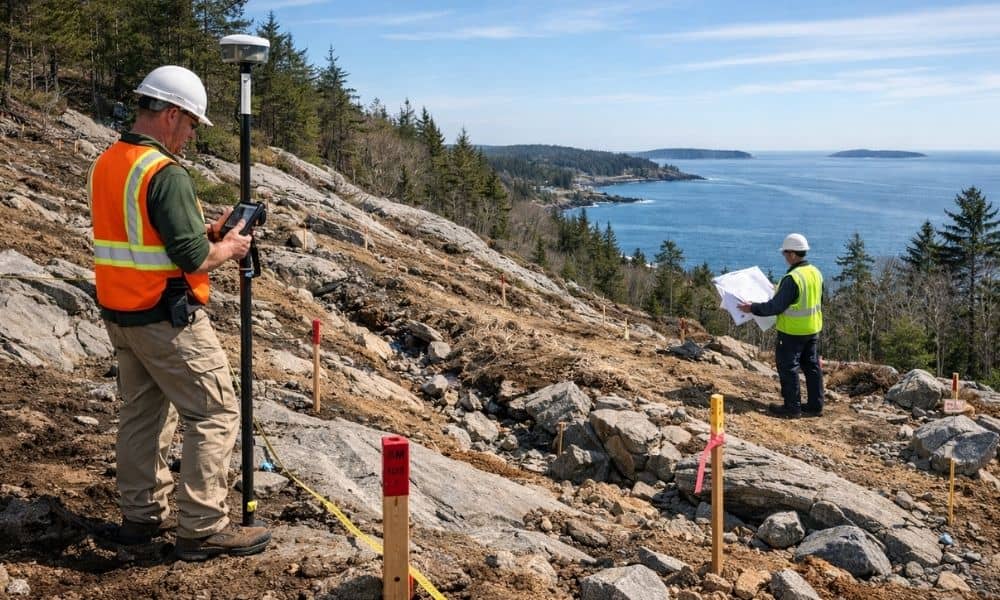

Every hillside lot hides a story under its surface. Some of that story sits in plain view, granite breaking through the grass in ledges the size of a truck. Some of it stays buried until an excavator hits it. A good topographic survey tells engineers which parts of that story they can see coming, and which parts still need digging up.
Hillside construction in coastal Maine doesn’t follow flat-lot rules. A 20% grade sitting on granite behaves differently than a level yard ever will. Here’s what engineers actually need from the survey data before design work starts.
Ledge Depth Mapping: Why Exposed Bedrock Changes the Whole Site Plan
York sits on a shelf of old granite. Soil cover on hillside lots can run just a few inches deep in one spot, then drop several feet a short walk away.
A topographic survey that only tracks the soil surface misses half the picture. Engineers need the survey to mark where ledge breaks the surface, and where possible, estimate rock elevation just below grade.
Why this matters:
- Footing depth changes based on where solid rock starts.
- Blasting or rock removal gets planned early, not discovered mid-project.
- Foundation type, spread footing versus pier, often depends on how close rock sits to the surface.
Skipping this step doesn’t make the ledge go away. It just moves the surprise to the middle of construction, right when it costs the most to fix.
Contour Interval Isn’t One-Size-Fits-All on Steep Grades
A flat coastal lot can get by with a 2-foot contour interval. A hillside running 15% to 25% grade cannot.
Wider intervals smooth over small but important shifts in slope. On steep ground, that smoothing can hide a step in the terrain, a low spot that holds water, or a grade break that changes how runoff moves.
For hillside work, engineers typically ask for:
- 1-foot contour intervals or tighter
- Extra spot elevations along breaklines
- Closer shot spacing anywhere the grade shifts direction
Tighter data takes more field time. In exchange, the design engineer isn’t guessing at slope behavior the survey glossed over.
Rock-to-Soil Transition Lines and Their Role in Cut and Fill Calculations
Cut and fill math works differently on ledge-heavy ground. On a flat lot with deep soil, moving earth is fairly predictable. On a hillside where soil runs thin over rock, those numbers shift fast.
A topo survey built for hillside work should flag rock-to-soil transition lines wherever they show up in the field. These lines tell engineers where cut volumes are likely to hit rock sooner than a soil-only map would suggest.
Without that data, a grading plan built purely on soil-surface contours can be wrong in the exact spots where it matters most. That’s usually right where equipment starts pulling dirt and hits stone instead.
Surface Drainage Behavior on Sloped Lots Near the Coast
Water moves downhill faster than most people expect. Hillside lots near tidal wetlands don’t give it much room to spread out. Runoff that would soak in gently on flat ground can carve a path down a slope in a single storm.
Engineers designing retaining walls, culverts, or stormwater systems on these sites need survey data that shows:
- Natural swales and drainage paths
- Low points where water collects
- Grade breaks that redirect runoff
This detail matters more near the coast, where drainage often ends up in wetlands or tidal areas. A survey that shows elevation but not where water actually travels leaves a gap the design has to guess around.
When a Topo Survey Alone Isn’t Enough: Coordinating With Geotechnical Data on Ledge Sites
A topographic survey shows where rock breaks the surface. It doesn’t show how strong that rock is, how it fractures, or what sits beneath it.
On ledge-heavy hillside lots, that gap matters for foundation design. Engineers often need the topo survey timed alongside a geotechnical investigation, soil borings, rock coring, or test pits, so the two data sets get read side by side.
The survey answers where. The geotechnical report answers what kind and how much. Foundation design works best when engineers have both instead of one standing in for the other.
Hillside lots don’t follow flat-ground rules, and pretending otherwise usually costs someone money partway through construction. The ledge, the slope, the drainage, none of it changes because a plan was drawn without it. Good survey data doesn’t remove the challenges of building on a slope. It just makes sure nobody finds them out the hard way.
